ASTM A240 / ASME SA240 UNS S32760 Plate

ASTM A240 UNS S32760 Plate, Zeron 100 Plate, ASME SA240 UNS S32760 Plate, Super Duplex Stainless Steel Plate, SA 240 Gr.32760 Plate, ASTM A240 UNS 32760 Sheet, Super Duplex 32760 Sheet Plate, Super Duplex S32760 Plate in Karnataka,ASTM A240 UNS S32760 Plate Supplier in Ahemdabad.

Zeron 100 Plate, super duplex stainless steel, is a highly alloyed stainless steel designed for use in aggressive environments. High strength, toughness, excellent corrosion resistance and its resistance to corrosion in a wide range of organic and inorganic acids are just a few characteristics that make this duplex stainless steel attractive to a variety of industries. Lastly, it is highly resistant to strong alkalis and resists corrosion in many non-oxidizing acids.

Usage of this ASTM A240 UNS S32760 Plate super duplex stainless steel is not recommended when it involves extended exposure to temperatures greater than 572° F. This exposure causes a substantial reduction in toughness. Notice the chemical composition of duplex 2507 and Zeron 100 are similar however; Zeron 100 contains slightly more copper and tungsten. The copper content (min. 0.5, max 1.0) permits excellent resistance to corrosion in many non-oxidizing and mineral acids like hydrochloric and sulfuric acid. Super Duplex S32750 Supplier in Coimbtoor.

Characteristics

  • Guaranteed corrosion performance (PREn ≥ 40)
  • Excellent corrosion resistance in mineral acids such as hydrochloric and sulfuric
  • High resistance to pitting and crevice corrosion
  • Excellent resistance to stress corrosion cracking in both chloride and sour environments
  • High resistance to erosion corrosion and corrosion fatigue
  • Excellent mechanical properties

Applications

  • Oil and gas industry applications
  • Pollution control
  • Pulp and paper
  • Power generation
  • Flue-gas desulfurization

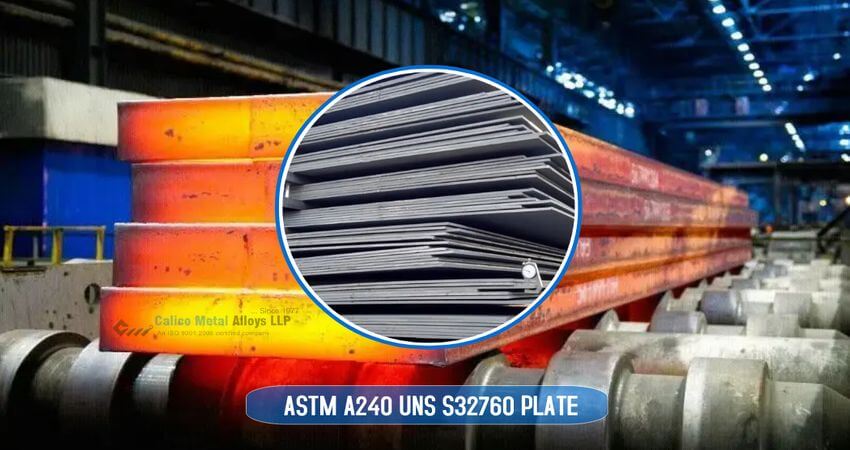

ASTM A240 UNS S32760 Plate

ASTM A240 UNS S32760 Industrial Plate, UNS 32760 Plate, ASTM A240 UNS S32760 Plate Supplier, UNS S32760 Plate in Pune, Super Duplex 2760 Plate, ASTM A240 UNS S32760 Plate in Gujarat, ASME SA240 UNS S32760 Plate supply in Surat, 2507 Super Duplex Steel, UNS 32760 Plate in Coimbtoor.

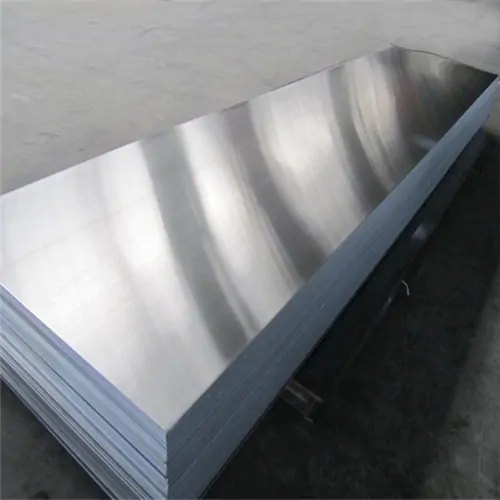

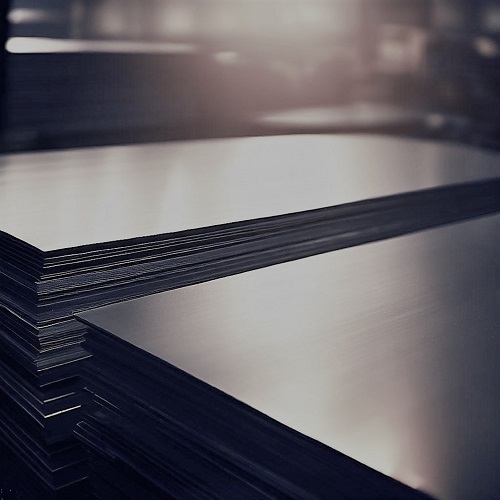

ASTM A240 UNS S32760 Plate

ASTM A240 UNS S32760 Plate

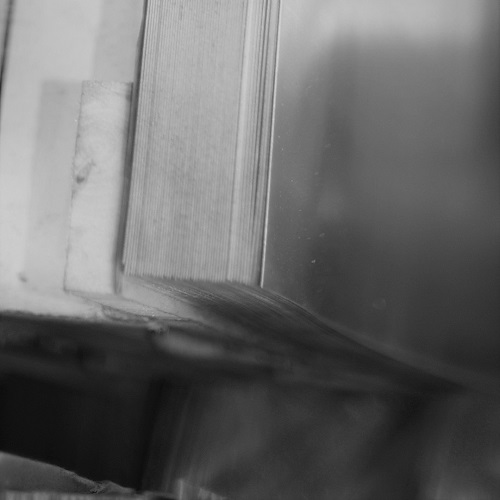

ASTM A240 UNS S32760 Sheet

ASTM A240 UNS S32760 Sheet

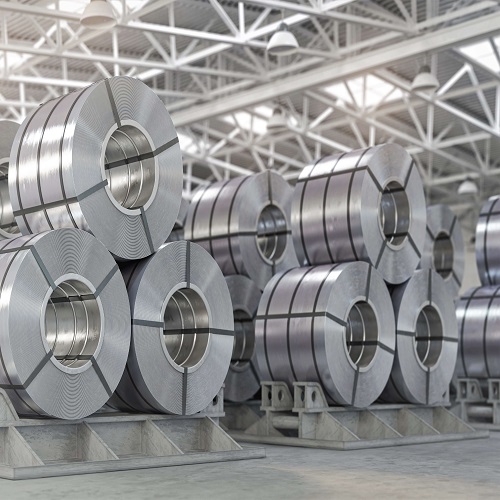

Super Duplex S32760 Coil

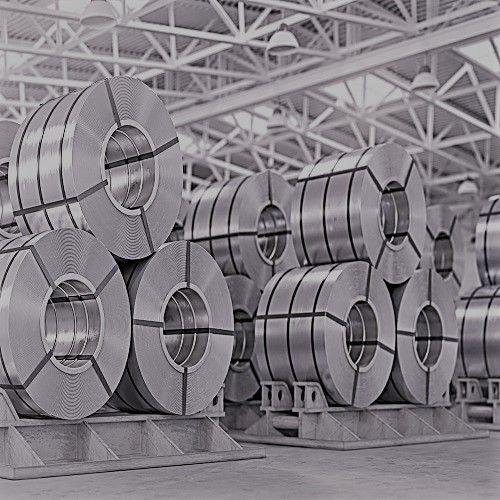

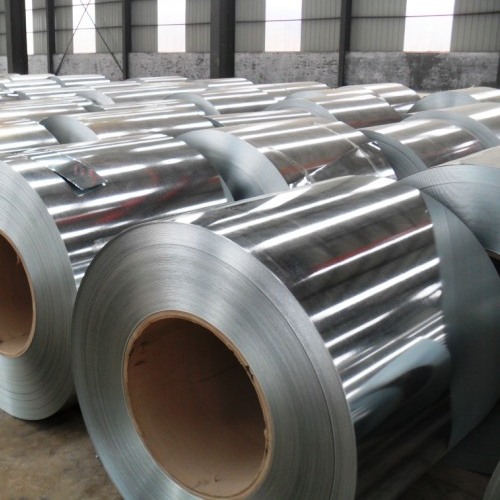

ASTM A240 UNS S32760 Coil


Specification of ASTM A240 UNS S32760 Plate

ASTM A240 UNS S32760 Plate Standards ASTM A240 / ASME SA240 - UNS S32760
Material Super Duplex Steel UNS S32760 Plate
Duplex S32760 Plate Specification ASTM A240 / ASME SA240
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
SA-240 Duplex Steel S32760 Plate Thickness 4mm-100mm
SA 240 Type S32760 Plate Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
SA 240 GR S32760 Plate Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated).
SA 240 TP S32760 Plate Hardness Quarter Hard, Half Hard,Spring Hard, Soft, Hard, Super Duplex 2507 Sheet suppliers
Stock available in form of Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc
Why choose Calico Metal ?
  • The third party inspection is accepted.
  • Mill Test Certificate is supplied with shipment.
  • Free sample is available. (Yes, we could offer the sample for free charge but do not pay the cost of freight.)
  • Minimum Nitrogen content and Ferrite Count Test
  • Tested to ASTM A923 Method "C" or ASTM G48 Method "A".
Surface 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc.
Delivery time Generally it is 7-10 days if the Super Duplex Steel S32760 Plate are in stock. or it is 15-20 days if the Super Duplex 2507 Plate & Sheet are not in stock, it depends to quantity.

Equivalent of ASTM A240 UNS S32760 Plates

Grade UNS EN W-Nr
2507 UNS S32760 DIN 1.4501 1.4501

Chemical Composition

Grade

Cr

Ni

Mo

C

W

Cu

N

Mn

Si

P

S

Fe

S32760

24.0-26.0

6.0-8.0

3.0-4.0

0.030 Max

0.5-1.0

0.50-1.0

0.2-0.3

1.00 Max

1.0 Max

0.03 Max

0.01 Max

Balance

ASTM A240 UNS 32760 Plate Contain a best chemical components given as above. Which provide better strength to the ASME SA240 UNS S32760 Plate. These Chemical Components make it much more stronger than other grade and it provide additional corrosion ressistance to Application.


Mechanical Properties of ASTM A240 UNS S32760 Plates

Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
Super Duplex UNS S32760 7.8 0.281 1350 2460

Tensile and Yield Properties of Super Duplex ASTM A240 UNS S32760 Plates

Tensile (MPa min) Yield (MPa min) Elongation (% min) Hardness (Brinell max)
750 550 25 270

Types Of ASTM A240 UNS S32760 Plates:

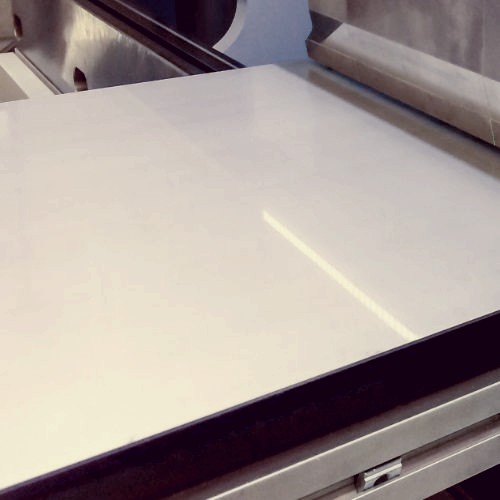

ASTM A240 UNS S32760 Plate

ASTM A240 UNS S32760 Plate
Super Duplex UNS S32760 Shim

Super Duplex UNS S32760 Shim
SA240 Super Duplex S32760 Plate

SA240 Super Duplex S32760 Plate
Super Duplex Gr.S32760 Plates

Super Duplex Gr.S32760 Plates
 ASME SA240 UNS S32760 Plate

ASME SA240 UNS S32760 Plate
 UNS S32760 Strip

UNS S32760 Strip


Dimension of ASTM A240 UNS S32760 Plate

Surface finish Thickness (mm) Width (mm)

2B – Cold rolled, heat treated, pickled, skin passed

0.25–8.0

max. 2032

2D – Cold rolled, heat treated, pickled

0.4–6.35

max. 1524

2E – Cold rolled, heat treated, mechanically descaled

0.4–8.0

max. 2032

2R – Cold rolled, bright annealed

0.25–3.5

max. 1524

2H – Work hardened

0.4–6.35

max. 1524

Polished, brushed

0.5–4.0

max. 1524


Imperial Dimension of Super Duplex UNS S32760 Plate

Surface finish Gauge (in) Width (in)

2B – Cold rolled, heat treated, pickled, skin passed

10–24

max. 72*

2D – Cold rolled, heat treated, pickled

12–24

max. 60

BA Mexinox only

18–28

max. 48

Polished (not brushed)

11–24

max. 60

Temper rolled Mexinox only

13–29

max. 48


ASTM A240 UNS S32760 Plate Price List

ASTM A240 UNS S32760 Plate

Price

ASTM A240 S32760 Plate price $5-$8/kg
Super Duplex UNS S32760 Plate price 300- 500 Rupee/kg
2B Finish Super Duplex S32760 Plate price 15-20 Dirham/kg
UNS S32760 super Duplex Plates Price 3- 5 pound/kg
Super Duplex 32760 Plate Price 1-1.9 kuwaiti Dinar/kg

Notes: Prices Are Fluctuating as per Market.
