ASTM A240 / ASME SA240 UNS S32205 Plate

ASTM A240 Duplex Steel UNS S32205 Plates, Duplex SAF 2205 Plates, Duplex Steel S32205 Plates, Duplex S32205 Plate Manufacturer, ASME SA240 UNS S32205 Plates Supplier, Duplex Steel S32205 HR Plates, Duplex Steel UNS S32205 Plates Stockist, Duplex Steel UNS S32205 Plates, Duplex Steel S32205 Plates Supplier in Mumbai.

The ASTM A240 Duplex Steel UNS S32205 Plate is made from a chemical composition that comprises chromium and molybdenum along with nickel. When it comes to duplex steel alloys, this is one of the most used. These ASTM A240 / ASME SA240 UNS S32205 Plates could be available in different shapes, sizes as well as dimensions dependent upon the need or the requirements of the applications.

These DUplex Steel UNS S32205 Plates could also be viable depending upon the specifications provided by the client. These Duplex Steel S32205 Plates have to undergo a series of tests so that the products that are produced are of excellent quality and so that they offer outstanding performance.

These Duplex Steel UNS S32205 Plates are manufactured in accordance with the industrial norms as well as standards. Therefore the necessary rules, as well as regulations, are taken into consideration so that the ASTM A240 / ASME SA240 UNS S32205 Plates that are produced fulfill the demands of the clients as well as of the applications. ASTM A240 Duplex Steel UNS S32205 Plates also are used in a large number of industrial applications because of the features that they have.

ASTM A240 Duplex Steel UNS S32205 Plates, Duplex Steel UNS S32205 Plates, ASME SA 240 Duplex Steel UNS S32205 Plates, Duplex Steel S32205 Plates at Best Price.

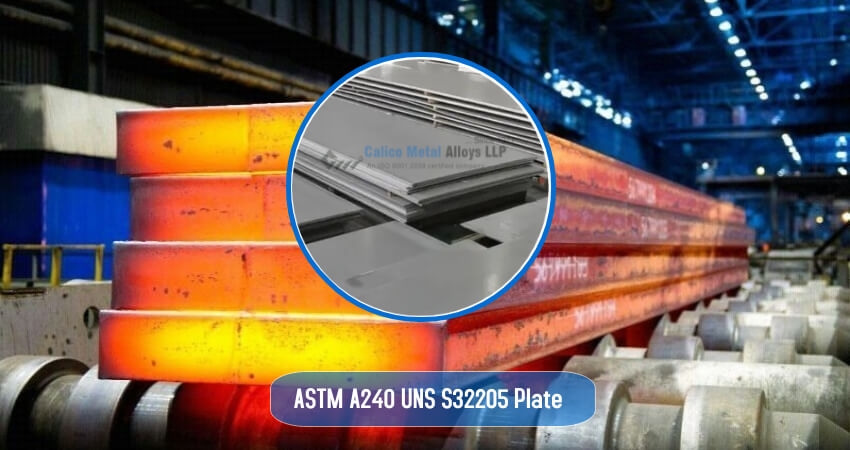

ASTM A240 UNS S32205 Plate

Characteristics

  • High resistance to chloride stress corrosion cracking
  • Resistance to chloride pitting and crevice corrosion
  • Good general corrosion resistance
  • Good sulfide stress corrosion resistance
  • High Strength
  • Good weldability and workability

Applications

  • Chemical process vessels, piping and heat exchangers
  • Pulp mill digesters, bleach washers, chip pre-steaming vessels
  • Food processing equipment
  • Oil field piping and heat exchangers
  • Flue gas desulfurization equipment


Also see

Duplex Steel UNS S32205 Plate Specification

Standard Industry Specifications

    ASME SA 240, ASTM A 240, UNS S32205, W.NR. 1.4462, GE-S400/ S1000, PWA-LCS, EN 10028-7, RR SABRe Edition 2, DFARS Compliant

Material Duplex S32205 Sheet & Plate
Specification ASTM A240 / ASME SA240
Standard Sizes 1000 x 2000 mm, 1220 x 2440 mm, 1500 x 3000 mm, 2000 x 2000 mm, 2000 x 4000 mm
Tolerances of Width and thickness
  • EN 10151 Duplex S32205 strip for springs
  • EN 10088 Duplex S32205 strip (general)
  • EN 10258 (formerly DIN 59381)
Width 10-2500mm
SA-240 Duplex S32205 Plate & Sheet Thickness 0.1mm to 100 mm Thk
SA 240 Type S32205 Plate & Sheet Length 2m, 2.44m, 3m, or as required
SA 240 GR S32205 Plate & Sheet Finish 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled S32205 Duplex Plate, 2B, 1D, BA, No.4, 8K, hairline, satin, brush, mirror etc.
SA 240 TP S32205 Plate & Sheet Hardness Quarter Hard, Half Hard,Spring Hard, Soft, Hard, Duplex S32205 Sheet suppliers
Stock available in form of Shim Sheet, Rolls, Strip, Flats, Clad Plate, Plain Sheet, Plate, Sheet, Coils, Foils, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Blank (Circle), soft annealed, sheared, annealed, tread plate,descaled, Checker Plate

Types of Duplex 32205 Plate available :

S32205 Stainless Steel 2B Plate
S32205 Stainless Steel 2B Plate
DSS S32205 2D Plate
DSS S32205 2D Plate
UNS S32205 BA Finish Plate
UNS S32205 BA Finish Plate
Werkstoff Nr. 1.4462 Chequered Plate
Werkstoff Nr. 1.4462 Chequered Plate
Duplex 32205 Clad Plate
ASTM A240 Duplex 32205 Clad Plate
Duplex 32205 Cold Rolled Plate
Alloy S32205 Cold Rolled Plate
UNS S32205 Diamond Plate
ASTM A240 Diamond Plate
Duplex 32205 Decorative Plate
UNS S32205 Decorative Plate
32205 Corrugated Plate
Duplex 32205 Corrugated Plate
Duplex 32205 Expanded Plate
UNS S32205 Expanded Plate
ASME SA240 1.4462 Flat Plate
DIN 1.4462 Flat Plate
Werkstoff Nr. 1.4462 Hot rolled Plate
S32205 Hot rolled Plate
1.4462 Patterned Plate
Duplex steel Patterned Plate
1.4462 Plate
ASME SA240 Plate
1.4462 Quarto Plate
1.4462 Quarto Plate
1.4462 Rolling Plate
ASME SA240 Duplex S32205 Rolling Plate


Types of Duplex 32205 sheet available :

UNS S32205 2d sheet
DSS S32205 2D Sheet
2B Sheet
S32205 Stainless Steel 2B Sheet
UNS S32205 BA Finish sheet Material
UNS S32205 BA Finish sheet
Werkstoff Nr. 1.4462 Chequered sheet
Werkstoff Nr. 1.4462 Chequered sheet
ASTM A240 Duplex 32205 Steel Clad sheet
ASTM A240 Duplex 32205 Clad sheet
UNS S32205 Cold Rolled sheet
Alloy S32205 Cold Rolled sheet
ASME SA240 32205 Corrugated sheet
Duplex 32205 Corrugated sheet
Duplex 32205 Decorative sheet
UNS S32205 Decorative sheet
UNS S32205 32205 Diamond sheet
ASTM A240 Diamond sheet
Saf 32205 Expanded Steel sheet
UNS S32205 Expanded sheet
ASME SA240 Flat sheet
DIN 1.4462 Flat sheet
Werkstoff Nr. 1.4462 Alloy Hot rolled sheet
S32205 Hot rolled sheet
1.4462 Patterned sheet
Duplex steel Patterned sheet
Duplex 1.4462 sheet
ASME SA240 sheet
1.4462 Quarto sheet
1.4462 Quarto sheet
1.4462 Rolling sheet
ASME SA240 Duplex S32205 Rolling sheet

Equivalent Grades - ASTM A789 UNS S32205 Plate

STANDARD WERKSTOFF NR. UNS
Duplex 2205 1.4462 S32205

Chemical Composition of Duplex Steel UNS S32205 Plates

Grade C Mn Si P S Cr N Fe Mo Ni
S32205 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 0.14 – 0.20 63.72 min 3.0 – 3.5 4.50 – 6.50

Mechanical Properties of Duplex Steel UNS S32205 Plates

Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
S32205 7.805 0.285 1420 – 1465 2588 – 2669

Duplex S32205 Plate Price List (Updated 2023)

Products
Price (Per Kg)
S32205 Duplex Stainless Steel Plate
₹ 300/ Kg
S32205 Stainless Steel Sheet
₹ 230/ Kg
S32205 Stainless Steel Plate
₹ 350/ Kg
ASTM A240 Duplex S32205 Plate
₹ 500/ Kg
ASTM A240 Duplex S32205 Sheet
₹ 300/ Kg

Duplex Steel S32205 Plate Size Chart

Stocked Sizes
Size (in inches)
Size (in mm)
.125"
3.18mm
.134"
3.40mm
.156"
3.96mm
.187"
4.75mm
.250"
6.35mm
.312"
7.92mm
.375"
9.53mm
.500"
12.7mm
.625"
15.9mm
.750"
19.1mm
.875"
22.2mm
1"
25.4mm
1.125"
28.6mm
1.250"
31.8mm
1.500"
38.1mm
1.750"
44.5mm
2"
50.8mm
2.500"
63.5mm
3"
76.2mm
