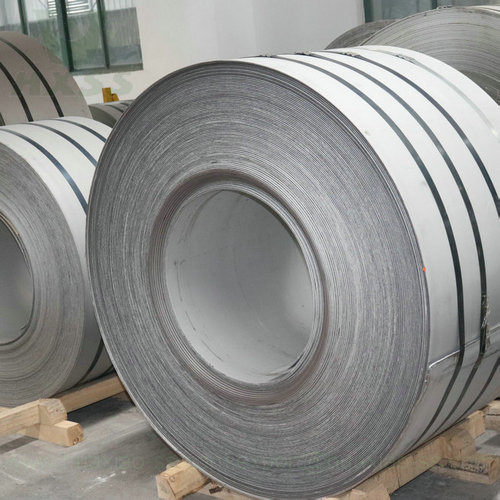

Duplex Steel UNS S32205 Strips

Duplex 2205 Hot Rolled Strips, Duplex S32250 Strips, Duplex Steel 2205 Polished Strips, Duplex Steel S32250 Cold Drawn Strips, Duplex Steel 2205 Strips, Duplex Steel 2205 Cold Rolled Strips, Duplex Steel S32250 Forged Strips Supplier in Mumbai.

Calicometal is a reputed fabricator and exporter of superior quality Duplex Steel UNS S32205 strips. Duplex steel UNS S32205 strips contain high Chromium, Nitrogen, nickel, and Molybdenum. It provides excellent corrosion resistance in extreme environments. We are offering Duplex steel UNS S32205 strip in several Sizes, Dimensions, and thickness. We also offer these Duplex Steel 2205 Polished Strips in customized as per the requirement of our client. These Duplex steel provide high yield strength and excellent resistance to general corrosion. We are providing Duplex steel UNS S32205 strips with many useful specifications and advantages. Some are high tensile strength and excellent ant - obstructive, rugged structure, perfect dimensional accuracy, and long lastingness. These Strips are offer superior resistance to the pitting, Crevice, and stress corrosion cracking. We strictly examine and test the raw material before using it for the fabrication process. Our experts follow international manufacturing norms and guidelines for the development of premium quality of Duplex Steel UNS S32205 strips based on our customers' demands. Our all professional workers are monitoring the Strips at every stage of Strips production. So, our Strips quality is the best.

We use the latest technology, Methodology, and Standard guidelines to develop Duplex Steel S32205 Hot Rolled Strips. We precisely design these Strips according to the international standard and specifications. Our quality checking team checks the quality of the Strips to assure excellent efficiency. They check every essential Parameter as per the guidelines of international quality standards. These tests include the Hardness test, Chemical test, Pitting resistant test, Mechanical Test and Positive material identification test, etc. We are supplying superior quality of Duplex Steel UNS S32205 Strip. Calicometal supplies the best quality of Duplex Steel UNS S32205 Strip to several industries such as power generation, Pharmaceutical industry and Paper, and pulp industry, etc. After the pStripsuction, we do packaging. Our company especially pays attention to the packaging process. We ensure to use the best quality of packaging material to prevent any damage to the pStripsuct during the Shipment.

Duplex Steel S32205 Hot Rolled Strips, Duplex Steel S32205 Strips Stockist, DS S32205 Strips & Strips Exporter in India, S32205 Duplex 2B Finish Strips, Duplex Stainless Steel S32205 Perforated Strips, #8 Finish Duplex Steel SAF 2205 Strips, Duplex S32205 Strips & Strips, ASME SA 240 DS S32205 Coils.

Characteristics

  • High resistance to chloride stress corrosion cracking
  • Resistance to chloride pitting and crevice corrosion
  • Good general corrosion resistance
  • Good sulfide stress corrosion resistance
  • High Strength
  • Good weldability and workability

Applications

  • Chemical process vessels, piping and heat exchangers
  • Pulp mill digesters, bleach washers, chip pre-steaming vessels
  • Food processing equipment
  • Oil field piping and heat exchangers
  • Flue gas desulfurization equipment

Chemical Composition

Grade



C

Mn

Si

P

S

Cr

Mo

Ni

N

2205 (S31803)

Min

Max

-

0.030

-

2.00

-

1.00

-

0.030

-

0.020

21.0

23.0

2.5

3.5

4.5

6.5

0.08

0.20

2205 (S32205)

Min

Max

-

0.030

-

2.00

-

1.00

-

0.030

-

0.020

22.0

23.0

3.0

3.5

4.5

6.5

0.14

0.20

Mechanical Properties

Grade

Tensile Str
(MPa) min

Yield Strength
0.2% Proof
(MPa) min

Elongation
(% in 50mm) min

Hardness

Rockwell C (HR C)

Brinell (HB)

2205

621

448

25

31 max

293 max

Physical Properties

Physical propertyValue
Density: 0.278 lb/in3
Melting Range:2525-2630°F

Specific Heat Capacity at 212°F

0.119 Btu/lb/°F

Thermal Conductivity at 212°F

8.4 Btu/hr-ft-°F

Poisson's Ratio

0.3

Elastic Modulus at 72°F

29 x 10 psi

Size Chart

Stocked Sizes
Size (in inches)
Size (in mm)
.125"
3.18mm
.134"
3.40mm
.156"
3.96mm
.187"
4.75mm
.250"
6.35mm
.312"
7.92mm
.375"
9.53mm
.500"
12.7mm
.625"
15.9mm
.750"
19.1mm
.875"
22.2mm
1"
25.4mm
1.125"
28.6mm
1.250"
31.8mm
1.500"
38.1mm
1.750"
44.5mm
2"
50.8mm
2.500"
63.5mm
3"
76.2mm

Equivalent Grades - duplex 2205

STANDARD
WERKSTOFF NR.
UNS
Duplex 2205 Plate
1.4462 / 1.4462

UNS S31803 / UNS S32205
