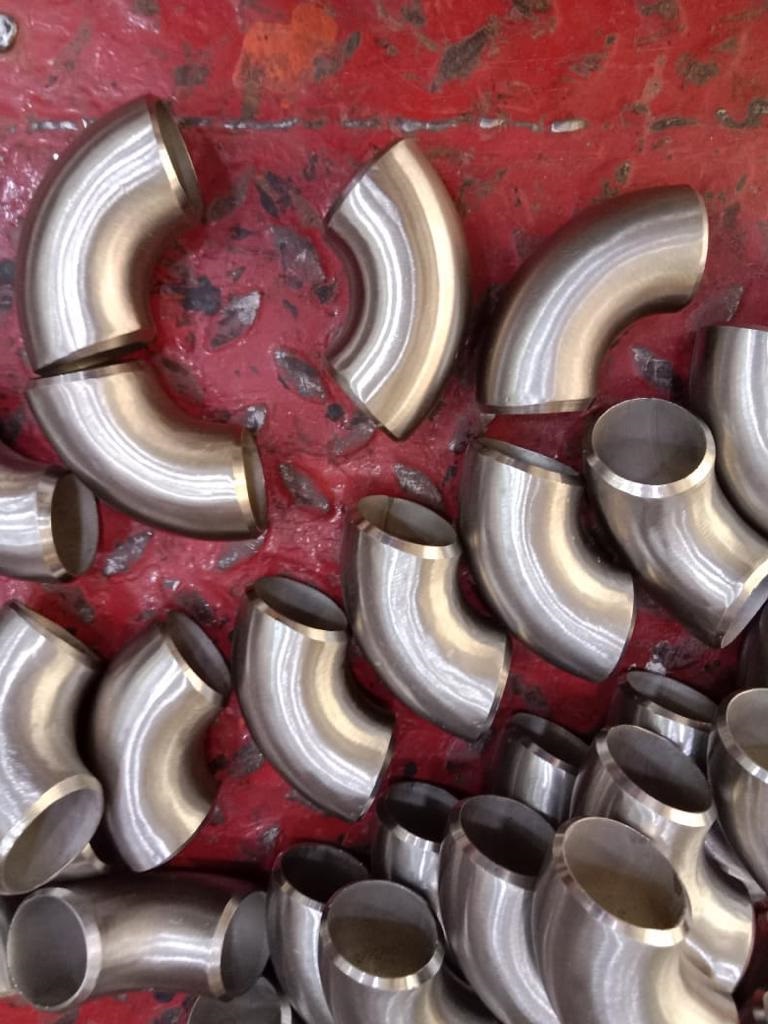

Stainles Steel 304/304H Fittings

SS Butt weld Elbow, SS Seamless Buttweld Pipe Fittings, SS Welded Buttweld Pipe Fittings Manufacturer, Exporter & Suppliers.

We manufacture quality stainless steel forged pipe fittings which are durable, dependable and of high efficiency. We are offering to our clients, stainless steel forged pipe fittings which are available in range of 15 NB to 100 NB in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75. These can be provided in following forms

The offered fittings are used in closing, tapering or joining the two parts of the pipes. Due to corrosion resistance specifications, these fittings are extensively used by the domestic and industrial sector. In order to deliver the high durability, these fittings are manufactured utilizing quality stainless alloy. Additionally, these fittings are quality tested on more than a few parameters to assure high tensile strength.


Being the emerging leader of this field, we completely value our responsibility and work hard to supply only supreme quality Forged Pipe Fitting. These are used in petrochemical industries, automotive, refineries and mechanical industries. It is a perfect use for tight hold on joints and sturdy support. To cater to industry defined quality parameters these components are examined thoroughly by our quality experts upon defined parameters of quality.

Advantages

  • Greater corrosion resistance
  • Higher tensile strength
  • Brilliant polish
  • Excellent machine strength
  • High creep resistance
  • High temperature strenght
  • Excellent mechanical properties

Also read : Different grades of stainless steel

Specification

Specifications ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790
Dimensions ASTM, ASME and API
304 Pipes & Tubes 1/2" NB - 16" NB
ERW 304 Pipes & Tubes 1/2" NB - 24" NB
EFW 304 Pipes & Tubes 6" NB - 100" NB
Size 1/8″NB TO 30″NB IN
Specialized in Large Diameter Size
Schedule SCH5, SCH10, SCH20, SCH30, SCH40, Std, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form Round, Square, Rectangular, Hydraulic Etc
Length Single Random, Double Random & Cut Lengtd.
End Plain End, Beveled End, Treaded

Chemical Composition

C MN SI P S CR NI N
304 0.07max 2.0max 0.75max 0.045max 0.03max min: 18.0 max: 20.0 min: 8.0 max: 10.5
304H min: 18.0
max:20.0
min: 8.0
max: 10.5
min: 0.04
max:0.10
0.75
max
2.0
max
0.045
max
0.03
max
0.10
max

Mechanical Properties

Grade Tensile Strength ksi (min) Yield Strength 0.2% ksi (min) Elongation % Hardness (Brinell) MAX Hardness (Rockwell B) MAX
304 75 30 40 201 92
304H 75 30 40 201 92

Physical Properties

SS 304
Density
lbm/in3
Thermal Conductivity
(BTU/h ft. °F)
Electrical
Resistivity
(in x 10-6)
Modulus of
Elasticity
(psi x 106
Coefficient of
Thermal Expansion
(in/in)/
°F x 10-6
Specific Heat
(BTU/lb/
°F)
Melting
Range
(°F)
at 68°F: 0.285 9.4 at 212°F 28.3 at 68°F 28 9.4 at 32 – 212°F 0.1200 at 68°F to 212°F 2500 to 2590
12.4 at 932 °F 39.4 at 752°F 10.2 at 32 – 1000°F
49.6 at 1652 °F 10.4 at 32 – 1500°F
SS 304H
Denstiy
lbm/in3
Coefficient of
Thermal Expansion (min/in)-°F
Thermal Conductivity BTU/hr-ft-°F Specific Heat BTU/lbm -°F Modules of Elasticity (annealed)2-psi
at 68 °F at 68 – 212°F at 68 – 1600°F at 212°F at 932°F at 32 – 212°F in tension (E)
0.285 9.2 11.0 9.4 12.4 0.12 29 x 106

Applications

  • Petroleum refineries,
  • Boilers
  • Heat exchangers
  • Condensers
  • Pipelines
  • Cooling towers
  • Steam exhausts
  • Electric generation plants

Calico Metal Alloys LLP exports their products to countries like UAE, Bahrain, Italy, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Kuwait, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam, South Africa, Kazakhstan & Saudi Arabia.
