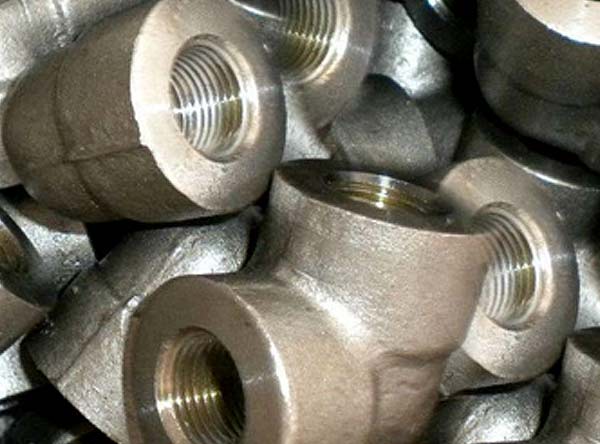

Stainles Steel 321/321H Fittings

Excellent resistance at normal temperatures and also has good resistance to oxidizing and carburizing atmospheres

We manufacture finest quality of butt weld pipe fittings to meet diverse material specification. Our steel butt weld pipe fittings are extremely durable and are available in various shape such as bent,triangular, rectangular etc. Butt weld pipe fittings are ideal multiple connection of pipes and to prevent fluid leakage. Different types of fittings can minimize potential fluid handling system and enhances their over all performance

Calico Metal Supplies and Exports its Stainless steel Fittings in all Stainless steel Grades along with Nickel alloys, Duplex Steel and nickel alloys. Harsh Steel Stocks butt weld stainless pipe fittings, socket weld stainless pipe fittings and screw type stainless steel fittings, Stainless Steel Clamps, Stainless Steel butt weld fittings, Stainless steel Elbows, Stainless steel Reducers, Stainless steel caps, Stainless steel railings, stainless steel fasteners, stainless steel in a variety of sizes.

Fittings are manufactured using premium quality metal alloy and latest techniques. Additionally, our provided fittings are processed adhering to industry standards and quality norms. The offered fittings are examined on set quality parameter in order to deliver better range to the clients. Also, these fittings are made available in various sizes and shapes. Apart from this, clients can get the fittings from us at cost effective rates.

Alloy 321/321H Fittings is a titanium stabilized austenitic stainless steel with good general corrosion resistance. It has excellent resistance to intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range of 800 – 1500°F (427 – 816°C). The alloy resists oxidation to 1500°F (816°C) and has higher creep and stress rupture properties than alloys 304 and 304L. It also possesses good low temperature toughness. Alloy 321H (UNS S 32109) is the higher carbon (0.04 – 0.10) version of the alloy. It was developed for enhanced creep resistance and for higher strength at temperatures above 1000oF (537°C). In most instances, the carbon content of the plate enables dual certification. Alloy 321 cannot be hardened by heat treatment, only by cold working. It can be easily welded and processed by standard shop fabrication practices.

Applications

  • Aerospace – piston engine manifolds
  • Chemical Processing
  • Expansion Joints
  • Food Processing – equipment and storage
  • Petroleum Refining – polythionic acid service
  • Waste Treatment – thermal oxidizers

Chemical Composition

% Cr Ni C Si Mn P S N Ti Fe
321 min:17.0
max:19.0
min: 9.0
max:12.0
max:0.08 max:0.75 max:2.0 max:0.045 max:0.03 max:0.10 min:5*(C+N)
max:0.70
Balance
321H min:17.0
max:19.0
min: 9.0
max:12.0
min:0.04
max:0.10
min:18.0
max:20.0
max:2.0 max:0.045 max:0.03 max:0.10 min:5*(C+N)
max:0.70
Balance

Mechanical Properties

Grade Tensile Strength
ksi (min.)
Yield Strength 0.2%
Offset ksi (min.)
Elongation -
% in
50 mm (min.)
Hardness
(Brinell) MAX
321/321H 75 30 40 217

Physical Properties

Denstiy
lbm/in3
Coefficient of
Thermal Expansion (min/in)-°F
Thermal Conductivity BTU/hr-ft-°F Specific Heat BTU/lbm -°F Modules of Elasticity (annealed)2-psi
at 68 °F at 68 – 212°F at 68 – 1832°F at 200°F at 32 – 212°F in tension (E)
0.286 9.2 20.5 9.3 0.12 28 x 106

Calico Metal Ind Pvt Ltd exports their products to countries like UAE, Bahrain, Italy, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Kuwait, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam, South Africa, Kazakhstan & Saudi Arabia.
