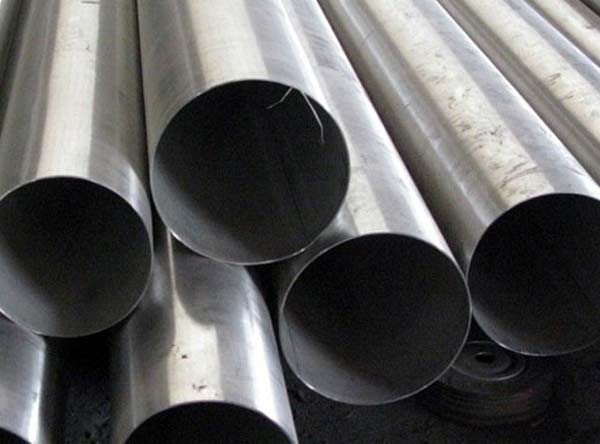

Stainles Steel 304/304H Seamless & Welded Pipe

Stainless Steel 304/304H werkstoff nr. 1.4301 Pipes & Tubes Manufacturer, Exporter & Suppliers. Stainless Steel UNS S30409 Seamless & Welded Pipes & tubes Suppliers In India.

We are manufacturer, exporter & suppliers of high quality ASTM A312 TP 304/304H Stainless Steel Pipes & tubes . We are Manufacturing SS 304/304H Pipes & Tubes of high quality raw materials. We provide a wide range of SS 304/304H Pipes and Tubes in Seamless, Welded, SAW, LSAW, DSAW etc. These stainless steel 304/304H pipes & Tubes are known for excellent tensile & material strength, and are offered in various dimensional specifications as required by the clients. SS 304/304H Stainless Steel Pipes & Tubes are used widely in equipment and utensils for processing and handling of food, beverages and dairy products.

Stainless Steel 304/304H seamless & welded pipes & tubes are probably the most consistently indicated. We fulfill the demand of each customer by providing the quality product. We have a collection of SS UNS S30400/S30403/S30409 pipes & tubes at an affordable rate in tweaked sizes and thicknesses according to the demand of the customers. You can purchase any of these Stainless Steel 304/304H Pipes & Tubes according to the standards ASTM/ASME A/SA 213 / 249 / 269 / 312 / 358 in various type, form and length.

Advantages

  • Greater corrosion resistance
  • Higher tensile strength
  • Brilliant polish
  • Excellent machine strength
  • High creep resistance
  • High temperature strenght
  • Excellent mechanical properties

Also read : Different grades of stainless steel

Specification

Specifications ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790
Dimensions ASTM, ASME and API
304 Pipes & Tubes 1/2" NB - 16" NB
ERW 304 Pipes & Tubes 1/2" NB - 24" NB
EFW 304 Pipes & Tubes 6" NB - 100" NB
Size 1/8″NB TO 30″NB IN
Specialized in Large Diameter Size
Schedule SCH5, SCH10, SCH20, SCH30, SCH40, Std, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form Round, Square, Rectangular, Hydraulic Etc
Length Single Random, Double Random & Cut Lengtd.
End Plain End, Beveled End, Treaded

Chemical Composition

C MN SI P S CR NI N
304 0.07max 2.0max 0.75max 0.045max 0.03max min: 18.0 max: 20.0 min: 8.0 max: 10.5
304H min: 18.0
max:20.0
min: 8.0
max: 10.5
min: 0.04
max:0.10
0.75
max
2.0
max
0.045
max
0.03
max
0.10
max

Mechanical Properties

Grade Tensile Strength ksi (min) Yield Strength 0.2% ksi (min) Elongation % Hardness (Brinell) MAX Hardness (Rockwell B) MAX
304 75 30 40 201 92
304H 75 30 40 201 92

Physical Properties

SS 304
Density
lbm/in3
Thermal Conductivity
(BTU/h ft. °F)
Electrical
Resistivity
(in x 10-6)
Modulus of
Elasticity
(psi x 106
Coefficient of
Thermal Expansion
(in/in)/
°F x 10-6
Specific Heat
(BTU/lb/
°F)
Melting
Range
(°F)
at 68°F: 0.285 9.4 at 212°F 28.3 at 68°F 28 9.4 at 32 – 212°F 0.1200 at 68°F to 212°F 2500 to 2590
12.4 at 932 °F 39.4 at 752°F 10.2 at 32 – 1000°F
49.6 at 1652 °F 10.4 at 32 – 1500°F
SS 304H
Denstiy
lbm/in3
Coefficient of
Thermal Expansion (min/in)-°F
Thermal Conductivity BTU/hr-ft-°F Specific Heat BTU/lbm -°F Modules of Elasticity (annealed)2-psi
at 68 °F at 68 – 212°F at 68 – 1600°F at 212°F at 932°F at 32 – 212°F in tension (E)
0.285 9.2 11.0 9.4 12.4 0.12 29 x 106

Applications

  • Petroleum refineries,
  • Boilers
  • Heat exchangers
  • Condensers
  • Pipelines
  • Cooling towers
  • Steam exhausts
  • Electric generation plants

Calico Metal Alloys LLP exports their products to countries like UAE, Bahrain, Italy, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Kuwait, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam, South Africa, Kazakhstan & Saudi Arabia.
