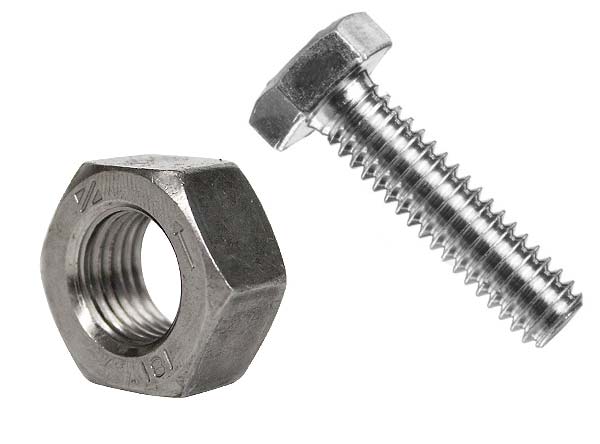

Stainles Steel 304/304H Nuts & Bolts

ASTM A193 / ASME SA 193 304/304H Stainless Steel Nuts , High Tensile Nut Bolt, Custom Grade & Size Available At Best Price & Free Sample

Our 304 Stainless Steel Fasteners product range includes 304 Stainless Steel Bolts, Hexagon head bolt, Hexagon head screw, Round head square neck bolt, Hexagon socket head cap screw in full thread and half thread, Hexagon wood screw, Hexagon socket button head screw, Hexagon socket button flange screw, Hexagon socket counter sunk head cap screw in full thread and half thread, square nuts, square weld nuts, hexagon weld nuts, thick nyloc nuts, hexagon flange nuts, threaded rods, dowel screws,Plain / Flat Washer, Spring Washers, Countersunk Washer,Tooth Lock Washer and many more. We provide products as per DIN, ANSI, JIS standards.

Calico Metal Alloys LLP carries a variety of 304 Stainless Steel Nuts from Carbon Steel, Stainless Steel and High Nickel Alloy -F467 NiCu 400 (Monel) and commercial 18-8/304, 316 Stainless Steel. We supply 304 Stainless Steel Nuts at best price..Our 304 Stainless Steel Fasteners plant is equipped with various testing facilities like Tensile Testing Machine also known as tension testing. We also conduct other tests like Hardness Test, IGC Test, Positive Material Identification Test to ensure that all the product going out of our manufacturing plant are the best in terms of quality.


Advantages

  • Greater corrosion resistance
  • Higher tensile strength
  • Brilliant polish
  • Excellent machine strength
  • High creep resistance
  • High temperature strenght
  • Excellent mechanical properties

Also read : Different grades of stainless steel

Specification

Specifications ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790
Dimensions ASTM, ASME and API
304 Pipes & Tubes 1/2" NB - 16" NB
ERW 304 Pipes & Tubes 1/2" NB - 24" NB
EFW 304 Pipes & Tubes 6" NB - 100" NB
Size 1/8″NB TO 30″NB IN
Specialized in Large Diameter Size
Schedule SCH5, SCH10, SCH20, SCH30, SCH40, Std, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form Round, Square, Rectangular, Hydraulic Etc
Length Single Random, Double Random & Cut Lengtd.
End Plain End, Beveled End, Treaded

Chemical Composition

C MN SI P S CR NI N
304 0.07max 2.0max 0.75max 0.045max 0.03max min: 18.0 max: 20.0 min: 8.0 max: 10.5
304H min: 18.0
max:20.0
min: 8.0
max: 10.5
min: 0.04
max:0.10
0.75
max
2.0
max
0.045
max
0.03
max
0.10
max

Mechanical Properties

Grade Tensile Strength ksi (min) Yield Strength 0.2% ksi (min) Elongation % Hardness (Brinell) MAX Hardness (Rockwell B) MAX
304 75 30 40 201 92
304H 75 30 40 201 92

Physical Properties

SS 304
Density
lbm/in3
Thermal Conductivity
(BTU/h ft. °F)
Electrical
Resistivity
(in x 10-6)
Modulus of
Elasticity
(psi x 106
Coefficient of
Thermal Expansion
(in/in)/
°F x 10-6
Specific Heat
(BTU/lb/
°F)
Melting
Range
(°F)
at 68°F: 0.285 9.4 at 212°F 28.3 at 68°F 28 9.4 at 32 – 212°F 0.1200 at 68°F to 212°F 2500 to 2590
12.4 at 932 °F 39.4 at 752°F 10.2 at 32 – 1000°F
49.6 at 1652 °F 10.4 at 32 – 1500°F
SS 304H
Denstiy
lbm/in3
Coefficient of
Thermal Expansion (min/in)-°F
Thermal Conductivity BTU/hr-ft-°F Specific Heat BTU/lbm -°F Modules of Elasticity (annealed)2-psi
at 68 °F at 68 – 212°F at 68 – 1600°F at 212°F at 932°F at 32 – 212°F in tension (E)
0.285 9.2 11.0 9.4 12.4 0.12 29 x 106

Applications

  • Petroleum refineries,
  • Boilers
  • Heat exchangers
  • Condensers
  • Pipelines
  • Cooling towers
  • Steam exhausts
  • Electric generation plants

Calico Metal Alloys LLP exports their products to countries like UAE, Bahrain, Italy, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Kuwait, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam, South Africa, Kazakhstan & Saudi Arabia.
