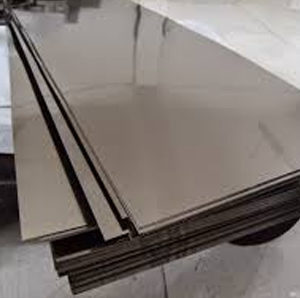

Haynes 25 Plate

HAYNES® 25 alloy (UNS R30605) is a cobalt-nickel- chromium-tungsten alloy that combines excellent high-temperature strength with good resistance to oxidizing environments up to 1800°F (980°C) for prolonged exposures, and excellent resistance to sulfidation. It can be fabricated and formed by conventional techniques, and has been used for cast components. Other attractive features include excellent resistance to metal galling.

Haynes 25™ alloy is the strongest of all the fabricable cobalt alloys. It has an excellent temperature strength and oxidation resistance to 2000 °F. However, Haynes 25™ cobalt alloy is hot formable between 1900 ≥F- 2300 °F. In addition, it is better to cold-work alloy L605 for bending, spinning and drawing component processes.

HAYNES® 25 alloy has good forming and welding characteristics. It may be forged or otherwise hot-worked, providing that it is held at 2200°F (1205°C) for a time sufficient to bring the entire piece to temperature. The alloy has good ductility, and thus also may be formed by cold working. The alloy does work-harden very rapidly, however, so frequent intermediate annealing treatments will be needed for complex component forming operations. All hot- or cold-worked parts should be annealed and rapidly cooled in order to restore the best balance of properties. The alloy can be welded by both manual and automatic welding methods, including gas tungsten arc (GTAW), gas metal arc (GMAW), shielded metal arc, electron beam and resistance welding. It exhibits good restraint welding characteristics.

Features

  • Meets AMS 5537 specifications
  • Meets AMS 5796 specifications
  • Enormously beneficial high temperature strength
  • Provides oxidation resistance up to 1800° F
  • Galling resistant
  • Resistant to acids, body fluids and marine environments

Applications

HAYNES® 25 alloy combines properties which make it suitable for a number of component applications in the aerospace industry, including parts in established military and commercial gas turbine engines. In modern engines, it has largely been replaced by newer materials such as HAYNES® 188 alloy, and, most recently, 230® alloy, which possess improved properties. Another area of significant usage for 25 alloy is as a bearing material, for both balls and races.

Specifications

  • UNS: R30605
  • Specifications: AMS 5537
  • International Specifications: Werkstoff Nr. 2.4964

Specifications : AMS 5537 / AMS 5759
Standard : AMS, AMS and API
Specialize Shim Sheet, Perforated Sheet, B. Q. Profile.
Size : 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Grade : Haynes 25 (UNS R30605)

Chemical Composition

Chemical Analysis

C

.05- .15

MN

1.0- 2.0

P

.4

S

.03

Si

.4

Cr

19.0- 21.0

Ni

9.0- 11.0

Co

bal

W

14.0- 16.0

Mechanical & Physical Properties

Properties Metric Imperial
Density 9.13 g/cm³ 0.33 lb/in³
Melting point 1382°C 2520°F
