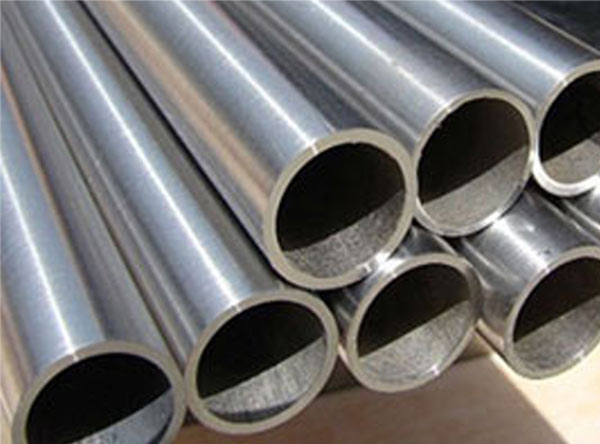

Nickel 200 Seamless & Welded Pipe and Tube

Nickel Alloy DIN 2.4066 Rectangular Welded Pipes, Nickel Alloy 200 ERW Pipes, UNS N02200 EFW Tubing Leading Manufacturers.

As a much-admired organization in the market, we as Calico Metal Alloys LLP are quite engaged in proposing a collection of Nickel Alloy 200 Pipes and Tubes as an exporter, manufacturer, supplier, and stockiest to our worldwide clients at reasonably priced costs.

Adding chromium, molybdenum, copper and other elements to these Nickel 200 Pipes and Tubes gives them an even higher resistance to oxidation and corrosion which makes it possible to use them in a wider range of applications. UNS N02200 Pipes and Tubes are excellent for heat exchangers in the chemical processing and nuclear industries. Meanwhile, we as well offer these WNR 2.4066 Pipes and Tubes in customized thicknesses and sizes as per the precise requirements given by our valuable customers in international quality of standards.

Advantages

  • Corrosion & oxidation resistant
  • Ductility
  • Brilliant polish
  • Excellent machine strength
  • High creep resistance
  • High temperature strenght
  • Excellent mechanical properties
  • Low gas content
  • Low vapor pressure
  • Magnetic properties

These properties and its chemical composition make Nickel 200 fabricatable and highly resistant to corrosive environments. Nickel 200 is useful in any environment below 600º F. It is highly resistant to corrosion by neutral and alkaline salt solutions. Nickel alloy 200 also has low corrosion rates in neutral and distilled water. This nickel alloy can be hot formed to any shape and formed cold by all methods.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS AFNOR BS GOST EN
Nickel Alloy 200 2.4066 N02200 NW 2200 N-100M NA 11 НП-2 Ni 99.2

Chemical Composition

Element Content (%)
Nickel, Ni ≥ 99
Iron, Fe ≤ 0.40
Manganese, Mn ≤ 0.35
Silicon, Si ≤ 0.35
Copper, Cu ≤ 0.25
Carbon, C ≤ 0.15
Sulfur, S ≤ 0.010

Physical Properties

Properties Metric Imperial
Density 8.89 g/cm3 0.321 lb/in3
Melting point 1435-1446°C 2615-2635°F

Mechanical Properties

Properties Metric Imperial
Tensile strength (annealed) 462 MPa 67000 psi
Yield strength (annealed) 148 MPa 21500 psi
Elongation at break (annealed prior to test) 45% 45%

Thermal Properties

Properties Metric Imperial
Thermal expansion co-efficient (@20-100°C/68-212°F) 13.3 µm/m°C 7.39 µin/in°F
Thermal conductivity 70.2 W/mK 487 BTU.in/hrft².°F

Fabrication and Heat Treatment

Nickel 200 alloy can be shaped through all hot working and cold working practices. The alloy can be hot worked between 649°C (1200°F) and 1232°C (2250°F), with heavy forming carried out at temperatures above 871°C (1600°F). Annealing is performed at temperature between 704°C (1300°F) and 871°C (1600°F).

Applications

  • Off-Shore Oil Drilling Companies
  • Aeronautical
  • Pharmaceutical Equipment
  • Power Generation
  • Chemical Equipment
  • Petrochemicals
  • Sea Water Equipment
  • Gas Processing
  • Heat Exchangers
  • Specialty Chemicals
  • Condensers
  • Pulp and Paper Industry

Calico Metal Alloys LLP Nickel 200 alloy to countries like UAE, Bahrain, Italy, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Kuwait, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam, South Africa, Kazakhstan & Saudi Arabia.
